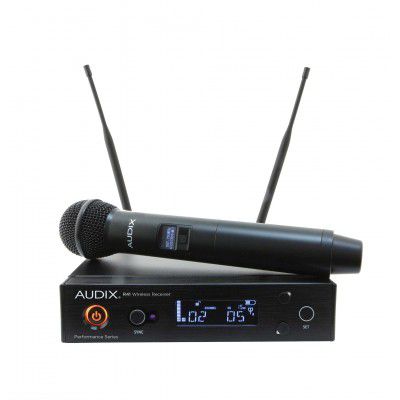

Micro Không dây Audix Ap41 OM2

Frequency Range

522 MHz – 554 MHz / 554 MHz - 586 MHz

Bandwidth

32 MHz

Compatible Systems

16 Compatible system operation

Switchable Frequencies

106 Preset frequencies

Manual Mode

n/a

Frequency Response

45 Hz – 18 kHz

Compander System

2:1

Pilot Tone

32 kHz

Receiving System

Single tuner, diversity

Signal-to-Noise Ratio

105 dB at 30 kHz deviation (A-weighted)

Total Harmonic Distortion

≤.7% (33 kHz deviation at 1 kHz)

Sensitivity

5 dBμV (S/N 60 dB at 25 kHz deviation, A-weighted)

Audio Output (AF=0)

Balanced: -12 dBv @ 25 kHz deviation, 600 ohm load 1/4": -18 dBv @ 25 kHz deviation, 10 kohm load

Output Connectors

1/4", XLR

Audio Level Adjust

Balanced: -12 to +9 dBu Line: -24 to +4 dBu (adjustable in 3 dB-steps)

Range

300', (91 M)

Power Supply

100 - 240V / 50 - 60 Hz, 12V DC, 1A

Dimensions

205 mm (W) x 206 mm (D) x 44 mm (H) 406 mm (W) x 209 mm (D) x 44 mm (H) (R42)

Net Weight

1.92 lbs. / 870 g 4.4 lbs. / 2.0 kg (R42)
